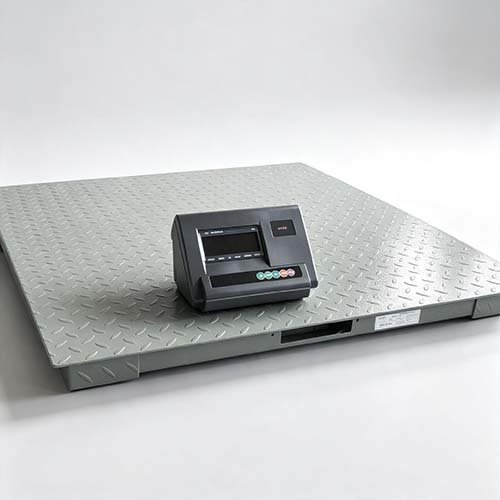

CW9530 Floor Scale / Platform Scale (500kg–10T)
The CW9530 Floor Scale is a heavy-duty, low-profile platform scale designed for reliable everyday use in warehouses, production floors, and material handling operations. Its frameless U-beam structure allows the checkered steel deck to bear loads independently, without relying on a separate body panel — resulting in a stronger, more durable design. Available in capacities from 500kg to 10 tons across multiple platform sizes, the CW9530 suits a wide range of industrial weighing needs.
Key Features
- Frameless U-Beam Structure — A unique design that lets the checkered steel deck bear loads independently, without a separate scale body panel, for added strength.
- Low-Profile Design — Easy to load and unload, with a durable checkered 5mm/2mm steel deck construction.
- Wide-Range Load Cell — Standard configuration uses the YZC-320C load cell for stable, accurate readings.
- Reliable Performance — Built-in overload limit, automatic reset, and strong repeatability with consistent return-to-zero accuracy.
- Durable Finish — Painted/sprayed coating for long-term protection in industrial environments.
- Configurable Display — Standard Yaohua A12E indicator, replaceable with alternative readout instruments.
Standard Sizes
| Model | Capacity | Width (m) | Length (m) |
|---|---|---|---|
| CW9530-1010-A12E | 1–10T | 1.0 | 1.0 |
| CW9530-1012-A12E | 1–10T | 1.0 | 1.2 |
| CW9530-1212-A12E | 1–10T | 1.2 | 1.2 |
| CW9530-1215-A12E | 1–10T | 1.2 | 1.5 |
| CW9530-1515-A12E | 1–10T | 1.5 | 1.5 |
| CW9530-1520-A12E | 1–10T | 1.5 | 2.0 |
| CW9530-1525-A12E | 1–10T | 1.5 | 2.5 |
| CW9530-1530-A12E | 1–10T | 1.5 | 3.0 |
| CW9530-2020-A12E | 1–10T | 2.0 | 2.0 |
| CW9530-2025-A12E | 1–10T | 2.0 | 2.5 |
| CW9530-2030-A12E | 1–10T | 2.0 | 3.0 |
Optional Accessories
- Instrument pole (for elevated display mounting)
- Carbon steel single ramp: 1.0×0.63m / 1.2×1.5×0.63m
- Carbon steel single ramp: 1.0×0.9m / 1.2×0.9m / 1.5×0.9m / 2.0×0.9m
Recommended Applications
- Logistics & Warehousing — receiving, staging, and outbound weighing
- Manufacturing & Production — material and component weighing on the production floor
- Recycling & Waste Management — bulk material and scrap weighing
